HollyWood Plugin Quick Reference


The project information window is specific to the type of project currently being worked on. This overview explains the options available to the HollyWood project.


Top Tip

While you can type a path into the relevant string gadgets, a file requester can be invoked by clicking the GetDir button button making it easier to select paths from the resulting requester.

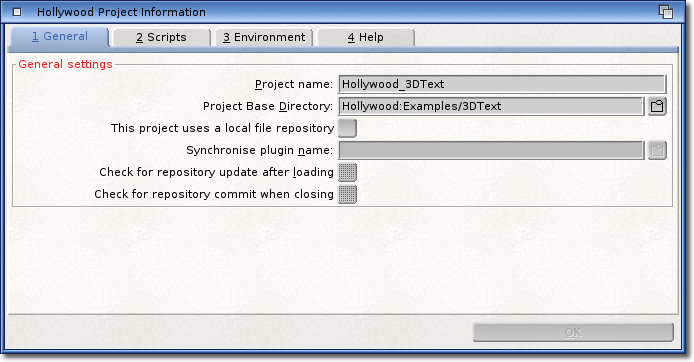

General Settings

The General settings allow basic options to be set, the following is a complete description:

  • Project Name
    This sets the name of the project which will be displayed in the title of the CodeBench screen and the project window. It is also used as the name of the project file on disk, which will be added to the recent list.

  • Project Base Directory
    This sets the base directory that all files will be loaded from. Files can be loaded from anywhere, but this directory will always be the default in the file requester when adding files.

  • This project uses a local file repository
    Specify if this project should be synchronised with a remote file server.

  • Synchronise plugin name
    CodeBench currently includes plugins for CVS and SVN use. These are by no means complete, and as such we have included a developer kit and documentation to allow further development of these plugins. The SDK includes an example, which when compiled, creates the cvs plugin supplied. The SVN plugin is also based on the same example code but is slightly more advanced as it offers a system to get the user name and password via a prompt requester. Once this option has been selected, the plugin then does it's job, and it runs synchronously meaning that CodeBench will wait until the plugin has finished transferring files. Please see the example documentation in the sdk/synchronising_plugin directory for more information. Manual synchronising is done via the "Synchronise" menu item.

  • Check for repository update after loading
    If the current project being loaded is specified to be synchronised with a remote repository, then this option will automatically scan that repository to determine whether any files need to be updated into the local "working" copy before proceeding with the project.

  • Check for repository commit when closing
    Again, if this project uses a remote repository, then this option, when enabled, will check to see if any files in the local "working" copy have been changed and should be committed to the repository before closing the project.

    As an added bonus, a fully featured plugin has been included for use with SVN servers, and more details can be found here.


back to the top

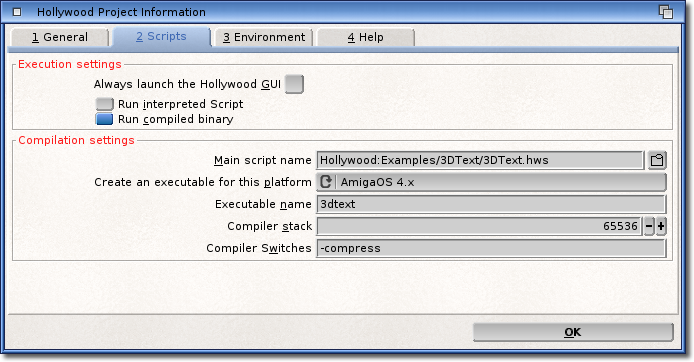

Scripts Settings

This page is divided up in to two sections, one for Execution and one for Compilation.

Execution settings section

  • Always launch the Hollywood GUI
    When this option is enabled, the HollyWood GUI is always opened, and running scripts can be done from there.

  • Run interpreted script
    Run compiled binary
    You can specify here what you want to execute. Selecting the compiled binary will build the project before running the target.

Compilation settings section
  • Main script name
    The name (and path) of the script specified here is the main "target". This is the script that will be compiled or interpreted.

  • Create an executable for this platform
    You can specify which platform you wish the compiled program to be suitable for. All the Hollywood options from V4 onwards are available.

  • Executable name
    Enter the name that you want the compiled binary to be saved as. This will be saved to the project directory, unless you specify a different path.

  • Compiler stack
    Specify how big to make the stack for the compiler process. The default is usually sufficient.

  • Compiler Switches
    You may supply any switches here to be passed to the Hollywood compiler. Please see the documentation for Hollywood for more information on available switches.


back to the top

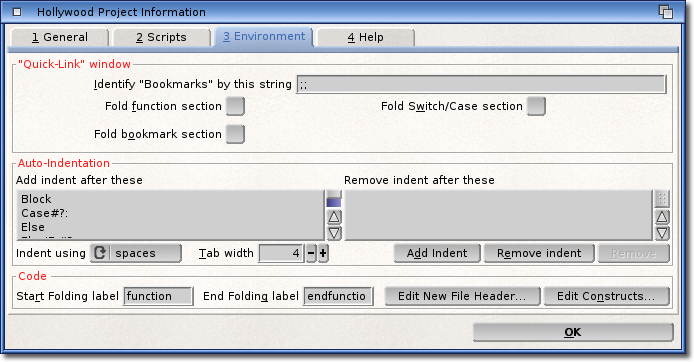

These settings specify ways to affect the environment that you will be working in. There are two sections, the first deals with how the "Quick-Link " window is presented, and the second affects how the editor interprets lines after which to automatically indent/outdent lines.

The "Quick-Link" window section

  • Identify "Bookmarks" by this string
    This is the symbol string that the user may embed into the source file. When this sequence of characters is found, the text that comes after it is treated as a bookmark. This is useful for marking certain areas of files so that the location can be revisited quickly. The marker needs to be suitable as to not interfere with the general syntax of the source file.

  • Fold function section
    This setting will allow the Functions section in the " Quick-Link" window to open in the collapsed state. This setting is relative to the current state of the associated section.

  • Fold Bookmarks section
    This setting will allow the Bookmarks section in the " Quick-Link" window to open in the collapsed state. This setting is relative to the current state of the associated section.

  • Fold Switch/Case section
    This setting will allow the Switch/Case section in the " Quick-Link" window to open in the collapsed state. This setting is relative to the current state of the associated section.

    Label colours can be changed to suit in the main Preferences editor.


back to the top



The Auto-Indentation section

This section is comprised of two lists, the first for adding indentation and the second for removing indentation. Both lists work in the same way, so we shall describe them both here in the same context.

Adding items can be done by clicking on the or buttons to add to each list respectively. The resulting requester asks for a string of characters with which a match must be made for the appropriate action to be taken. Due to the highly versatile nature of programming languages, in order to simplify this process, the strings can include wildcard patterns exactly the same as used by AmigaDOS. This allows a level of flexibility which should meet the needs of even the most demanding rules. Most languages use braces to delimit sections of code, and the general programming standard is to indent the code inside the braces, which can now be automated. Adding an "{" to the indent list will cause the cursor to be shifted in by a certain amount of columns depending on the size of the "tab" set. A "tab" can either be a real tabulation character, or you may opt to insert a series of space characters instead, it is entirely up to you.

To add flexibility, we can also add a string like "case #?:". This follows the wildcard convention and results in any line ending with a "case" statement should automatically indent.

Items in either list can be removed by simply selecting them, and clicking the button.

All of the settings in this section (with the exception of the width of the TAB - which is project specific) are applicable to the current project type, rather than the project itself. This means that the configuration of these lists will apply to all projects that use the same plugin, and saves having to configure the indentation settings for every project.

Different project types can have different indentation settings, and gives the user full flexibility over indents and outdents.

The width of the TAB (whether it be a real tabulation or spaces) is a project specific setting which defaults to 4 columns. This allows the user to configure different settings for different projects, which may be useful when sharing code with other developers, or when using different project types.


back to the top



The Code section

  • Start folding label
    When this sequence of characters is encountered in the current source file, it denotes the start of a section of code that can be "folded".

  • End folding label
    As with the label above, this sequence of characters denotes the end of a "foldable" code section.

  • Edit Constructs
    You may envoke the construct editor from here. More information on code constructs is available from the editor page.


back to the top

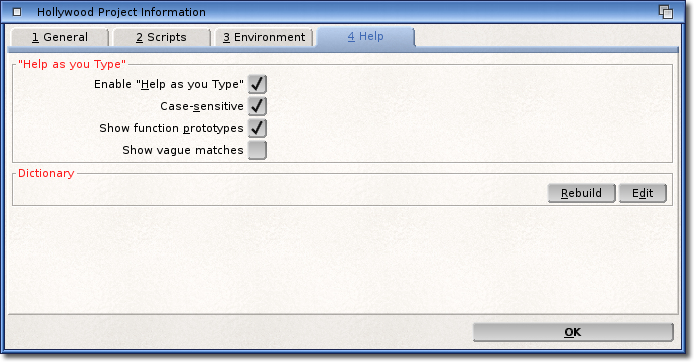

These settings allow customization of the "Help-as-you-Type" system.

  • Enable Help-as-you-Type
    Naturally, this option turns this feature on or off as required.

  • Case-Sensitive
    When searching for entries, the case of the letters is dependent on this setting. While ignoring case can ease finding matches easier, it can also generate lots of matches. Use wisely.

  • Show function prototypes
    The list of functions can optionally contain the full prototype. This will be inserted into the text if a selection is made.

  • Show vague matches
    Enabling this option will lead to a lot of matches being shown, as the check uses a much wider system for finding matches.


The Dictionary section allows you various configuration options.

The button will start to scan the installed system and build the dictionary from scratch. It is not recommended to interrupt this process, and it may take a while depending on how many files it has to check. A confirmation requester will be displayed if an existing dictionary is going to be overwritten as you may lose any custom additions you may have made.

The button allows changes to be made manually to the dictionary. You can edit existing entries, or create new ones from this window. Any manual changes you may make will be lost if the dictionary is remade.


back to the top
